| ★The following machines are suitable for a small quantity of material★ |
|
Gravity Separator
MH-510 Type
|
|
|
 |
|
Specification
| Type |
Capacity
(kg/H) |
Dimension of deck（mm） |
Electric power(kw) |
| Width Ｘ Length |
| MH-510 |
50〜100 |
360×760 |
1.5+0.2+0.1 |
|
|
|
|
Gravity Separator
MH-550 Type |
|
|
 |
|
Specification
| Type |
Capacity
(kg/H) |
Dimension of deck（mm） |
Electric power(kw) |
| Width Ｘ Length |
| MH-550 |
10〜150 |
700×440 |
1.5+0.2+0.1 |
|
 |
|
|
|
Sieve Grador
MH-610 Type
|
|
|
(Option) |
|
Specification
| Type |
Capacity
(kg/H) |
Dimension of screen（mm） |
Electric power(kw) |
| Width Ｘ Length |
| MH-610 |
50〜100 |
300×900 |
0.2(+0.1) |
|
|
|
|
Suction-type
Pneumatic Separator
MHV-100 Type
|
|
|
 |
|
Specification
| Type |
Capacity
(kg/H) |
Dimension of screen（mm） |
Electric power(kw) |
| Width X Length X Hight |
| MHV-100 |
10〜20 |
730×600X1,245 |
AC100V 0.2+0.1 |
|
 |
|
|

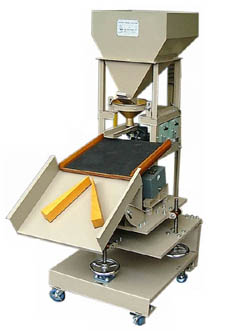

Vibratory deck Separator
MH-300V Serise |
|
|
 |
|
Specification
| Type |
Capacity
(kg/H) |
Dimension of deck（mm） |
Electric power(w) |
| Width Ｘ Length |
| MH-310V |
0.5〜5 |
450×450 |
AC100V 280 |
| MH-330V |
1.0〜15 |
800×600 |
AC100V 450 |
|
 |
|
|
Thickness Separator
MH-900R Serise
|
|
|
 |
|
Specification
| Type |
Capacity
(l/H) |
Dimension of roller（mm） |
Electric power(kw) |
| Diameter Ｘ Length |
| MH-910R |
30〜40 |
110×1,000 |
0.2+0.1 |
| MH-930R |
90〜120 |
80×1,000 |
0.75+0.1X3 |
|
|
|
|
Multiple roll Separator
MH-9S Type |
|
|
 |
|
Specification
| Type |
Capacity
(kg/H) |
Dimension of deck（mm） |
Electric power(kw) |
| Width Ｘ Length |
| MH-510 |
50〜100 |
360×760 |
1.5+0.2+0.1 |
|
 |
|
|
|
|
§Material§ |
|
|
Seed,Melon,Watermelon,Pumpkin,Chinese,cabbage,Broccoli,Radish,Gourd,
Carrot,Pasture,flower,etc. |
 |
